Workflows and operations

For your first connection, use accounts and session formats. For an explanation of saved versions, event policies, and gaps, see how collection works. This guide covers daily operation and recovery.

Operator workflow#

Diagram as text

1. Choose storage and key protection → Open the panel with its token
2. Open the panel with its token → Select a workspace
3. Select a workspace → Configure Direct or proxy route
4. Configure Direct or proxy route → Enter phone or choose files / QR
5. Enter phone or choose files / QR → Check account identity and select accessible groups
6. Check account identity and select accessible groups → Save event and attachment policies, then start observation
7. Save event and attachment policies, then start observation → Monitor errors, access, queues and disk
8. Monitor errors, access, queues and disk → Retain independent checkpoints
9. Retain independent checkpoints → Export and verify material

Authorization, transport connectivity, access to a group and completeness of delivery are different properties. A green connection status does not imply all events have been captured.

Share work without sharing the main key#

Open Access to give a reviewer or analyst their own token. Choose the accounts and chats they can open, then allow viewing, export or operational actions. An operator who starts/stops collection needs whole-workspace access; a reviewer can be limited to a single chat. Session limits, expiry and IP rules are separate from Telegram account authorization. See access and permissions.

Use Open sessions to end a connection or revoke the access to end all of its sessions. The administrator console combines current-process activity across workspaces. Session closure leaves collection running.

Runtime modes#

Local demo access opens automatically without manual token entry. It uses a process-lifetime capability valid only for direct loopback access to an isolated synthetic demo; the main panel token is not disclosed. Real workspaces and remote or proxied demo access retain token authentication. Demo entry grants no Telegram authorization.

Monitoring categories#

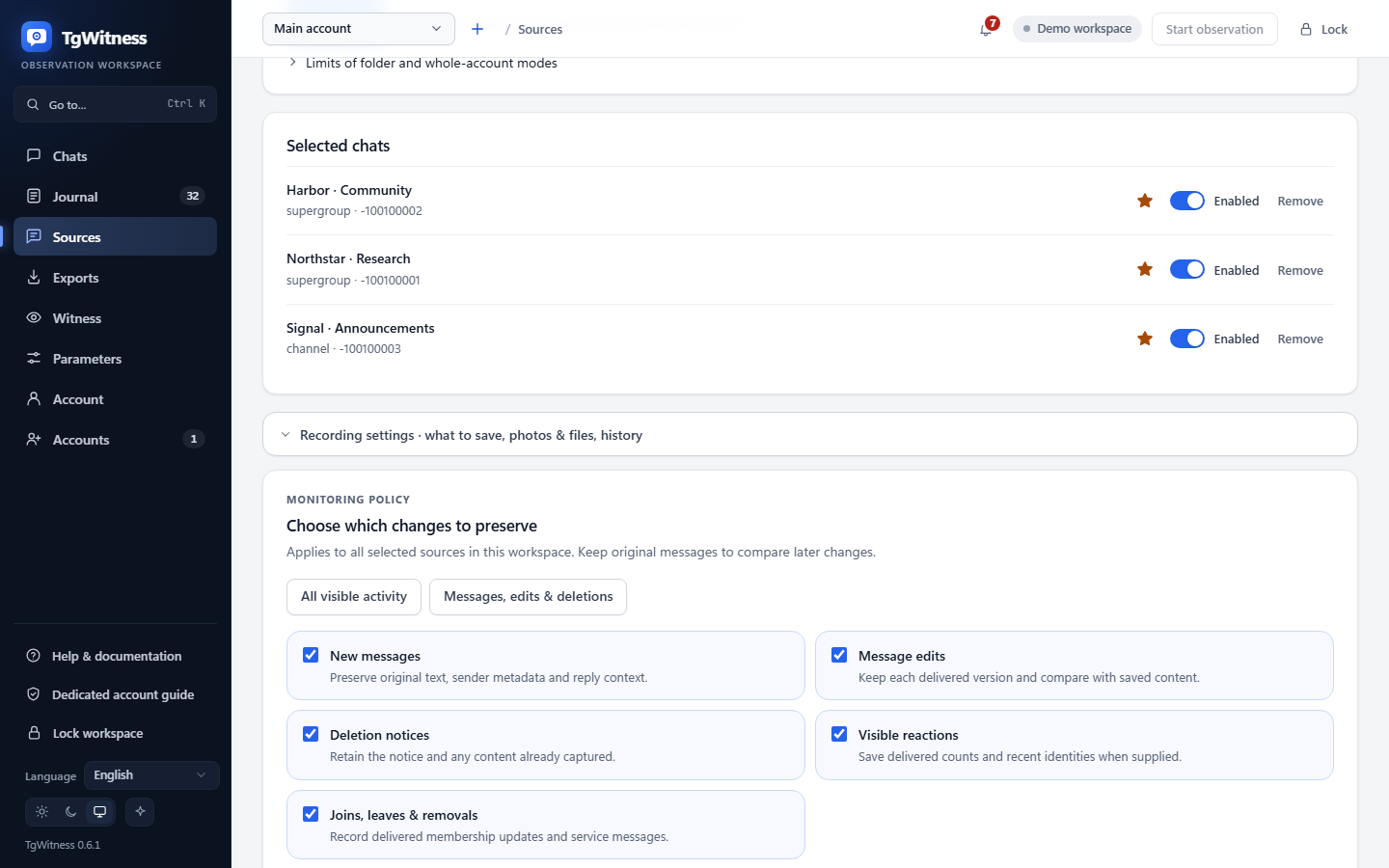

In Sources → Capture settings → Choose which changes to preserve, select new messages, edits, deletion notices, reaction updates and membership events independently. The default retains all categories. Messages, edits & deletions keeps the original context while disabling separate reaction/member updates. All visible activity restores all five. Presets change the form; press Save monitoring settings to apply.

The saved policy applies to all selected sources in that workspace. Other workspaces retain their own settings. Each actual change records signed before/after values; the current policy is also included in process receipts and observation start records. Disabling a category does not delete earlier observations. Re-enabling does not retrieve missed changes. There is no per-group category override in this version.

Keep new messages enabled when prior content matters: a deletion notice cannot recover text that was never captured. Operational/coverage records and other group service events are always retained. Explicit history snapshots are separate from live-category selection and may include service messages. These switches do not redact reaction/member metadata embedded in an otherwise captured Telegram object.

A history snapshot may queue attachments while paused. Start observation to process them. Queued does not mean downloaded. An unavailable original file is not replaced with a newer edited version; outcomes are recorded separately.

Lock clears browser access and secret fields but leaves collection running. Closing a tab also leaves the process running. Stopping the Python process or service stops collection regardless of the browser state.

Deleting an additional workspace stops its collector and removes its local data. If a locked file or filesystem error interrupts removal, the panel reports the failure and keeps the workspace listed as unavailable (DeletionPending). Close programs holding its files and retry Delete. Restarting TgWitness leaves that workspace stopped and does not recreate its partially removed journal or keys. A successful deletion is recorded only after the directory has been removed; separately exported or backed-up copies remain under their own retention policy.

Notifications#

Open Sources → Notifications → Alerts and a daily summary. TgWitness uses Apprise to send alerts to Matrix, Telegram, Discord, Slack, ntfy, email and other supported services. You can add several destinations to one workspace.

1. Enter one Apprise destination URL per line. Use the service catalogue and URL formats for your service.
2. Turn on Send notifications, then choose problem alerts, changes in observed chats and a daily summary. The summary hour uses the server's time.
3. Turn on Include short excerpts if you want saved text from deleted and edited messages in the alerts.
4. Press Save notifications, then Send test to check delivery.

For your own receiver, use Apprise's JSON webhook. For example, jsons://notify.example.org/tgwitness sends JSON over HTTPS to that endpoint. This is a fictional example; replace it with your own destination.

Destinations and settings belong to the selected workspace. Change notifications cover its observed sources, including newly added chats. The bell in the top bar also lists recent problems and chat changes.

In the demo, the notification controls are visible but sending is disabled. Configure delivery in a real workspace. Notifications use that workspace's Direct, SOCKS5 or HTTP route; MTProxy cannot carry them. Non-HTTP destinations such as SMTP require a direct route.

Panel layout#

Journal shows observations, search and filters. An edit opens captured versions; a deletion opens prior content if available. Unknown attribution remains explicit. Counts are available under Overview; acquisition details stay in the local guide.

Open an edited message to compare its versions with Inline diff or Side by side; Raw shows the saved fields. Changes to hidden links and bot buttons appear separately. Open an attachment preview to inspect saved images, audio or video; the download button keeps the preserved original available.

Live updates the journal and chats as records arrive. Pause it while reviewing, or use the new-events button when ready; collection keeps running. Ctrl/Cmd+K finds panel actions and searches the journal.

Sources contains the observation scope (chosen chats, a Telegram folder or the whole account), accessible chats of every type, selected sources with priority stars, attachment and recheck settings and history snapshots. Private sources are selected by dialog/ID without a public link. Access status describes the most recent check, not permanent permissions.

Filter sources, select their checkboxes, then enable, pause or mark them as priority together. In the available-chat list, Add selected uses your selection; Add all matching uses the current search and type filter.

Chats → People lists everyone with saved messages; with people profiles switched on for the chat, a click opens that person's profile with links to the journal records.

Witness creates read-only witness tokens, shows when each witness last checked and gives the commands and options to run one (independent witness).

Parameters holds every limit and pace of the workspace that is not on another page: how many dialogs are read, how often the chat list is re-read, heartbeat and checkpoint intervals, the startup buffer, how rechecks spread their requests (first delay, chats per pass, pause between chats, messages recovered and re-requested), disk reserve, timeouts and retries of downloads, what people profiles look for (including your own regular expressions), size and pace of notifications, snapshot, ZIP and browser-download limits, and Telegram client timeouts and retries. Each field shows its range and default; changed fields are marked and can be restored one by one or all together. Every change is recorded as parameters.changed with the values before and after, and observation start records name the values in force. Values apply from their next use; client timeouts and retries from the next connection. Recheck intervals, attachment types and sizes, evidence and off-site copy intervals stay on their own pages and take any value in their range, not only presets.

The bell in the top bar lists recent problems and changes in observed chats; unread ones are counted until marked as read. Changes are grouped per chat and hour ("12 deleted, 1 edited, 0 not found"), and problems such as a sign-out or a full disk stay in the list however busy the chats are.

Account starts on the phone-number field. Continue leads directly to code entry, asking for API credentials only when missing. QR and file import are alternative tabs. Saved API credentials are reused only within their own workspace. The entry screen has no sidebar, statistics, or setup paragraphs. The Settings icon opens API, proxy, storage, and additional-account controls. New installations start here; connected accounts with no selected sources start on Choose chats. Changing the route requires paused observation and cancels unfinished login. An existing journal cannot be silently rebound to a different Telegram account.

Exports checks journal integrity and produces portable files. Its workspace ID can be passed to the download CLI. Every export pins a full journal prefix; later events enter a subsequent export. Search filters do not change the package scope. Detailed signing and coverage information is under Verification & limitations.

The panel reports collector state, queued/failed media, oldest pending media, free disk, request pauses and sources whose access is unconfirmed under Collector health. These details are collapsed initially and hidden on Account. A setup card shows the next step: connect an account, choose sources, or start observation. The account list is a load-time snapshot; the selected workspace refreshes periodically. This is not a multi-process SLA monitor.

The UI uses local assets and text rendering for source content. Desktop and narrow Chromium layouts are tested. This is not a complete accessibility certification; screen-reader and human usability evaluation remain separate work.

Deployment environments#

Portability means no mandatory cloud service or frontend build. Each target still needs compatible Python/crypto dependencies, local disk and network access. See DEPLOYMENT.md and service templates.

Workspaces share CPU, memory and an event loop. For process isolation, use distinct instances, ports, data directories and account authorizations. There is no unified panel across separate instances. Never point several workers at one database.

Startup checks and exports#

Run python start.py --check before starting a prepared environment. Add --json for machine-readable checks or pass the intended --data-dir, --host and --port. The command checks prerequisites without Telegram login or creating a journal. It does not verify a journal or prove capture readiness; journal verification runs during application startup. An occupied port may simply be an existing instance.

Browsers supporting the File System Access API save exports through a writable stream. Other browsers buffer at most 128 MiB. Use the streaming CLI for larger exports or browsers without file streaming:

python -m tgwitness.download --token-file data/live/panel-token.txt --out evidence.zip

Add --profile ID from Exports for a child workspace. Use --url https://server for remote access. Plain HTTP is accepted only for loopback destinations. The token is read from a file and sent in a header, not printed or put in a URL. Redirects are refused. Existing destinations are not overwritten. Failed transfers remove their temporary part file. The reported SHA-256 is a transfer checksum; verify the signed ZIP separately with a trusted fingerprint/checkpoint.

Backup, restore and interruptions#

1. Pause observation and stop the process cleanly.
2. Copy the entire data directory: databases, WAL/SHM if present, media, credentials.enc, signing.enc, network.enc, vault keys/metadata, token, checkpoints and every profiles/ directory.
3. For external-key mode, separately preserve the master key and retain each vault.external.json. Generating a new key cannot recover the old secrets.
4. Restore while the destination is stopped; configure the original key, restrict access, and verify integrity before resuming.
5. Record downtime and verification results. A history snapshot cannot prove that no deletions happened during the interruption.

Evidence ZIPs exclude sessions/private keys and are not full service backups. Four things are protected differently:

A full service backup is the stopped data directory described above, not an export. Use protected storage and a deliberate transfer mechanism for both. Temporary server exports live in each workspace's temporary-exports/; completed responses are cleaned up, and interrupted export files are removed on the next startup while that workspace's instance lock is held.

A connection-restored event does not guarantee recovery of intermediate changes. Persistent media jobs and the Telegram update position survive restart; see evidence format.

Capacity and retention#

Default limits, all changeable under Parameters: the first 1,000 dialogs, 500 messages per snapshot, 4 GiB uncompressed signed ZIP content (larger archives need verify.py --max-gib N) and a 128 MiB browser fallback. Attachments take 1–2,000 MiB per type under Sources → Attachments. The download CLI defaults to 5 GiB transferred. Available disk can be a lower limit. Reserve space for journals, media, WAL, temporary exports and backups. Exports use the data volume rather than Compose's 512 MiB /tmp.

Measure events/second, queue age, media bytes and disk latency rather than counting groups alone. Synthetic local benchmarks do not guarantee Telegram delivery. There is no automatic retention deletion. Removing a journal tail invalidates its relationship to retained checkpoints.

Priority rechecks already exist: starred sources are rechecked every 15 minutes by default, others every 6 hours (see recheck tiers). Password-protected exports exist as described above. Live Telegram/proxy acceptance, durable replay, admin-log and reaction polling, isolated workers, encryption of the local journal and media by TgWitness itself and independent review remain separate work. Scoped access is documented in access and permissions. See READINESS.md, LIVE_ACCEPTANCE.md and VERIFICATION.md.
